| Tên thương hiệu: | SJK |
| Số mẫu: | SJK-SR395-F11-A6 |
| MOQ: | 1000 chiếc |
| Giá bán: | negotiable |
| Chi tiết bao bì: | 1Kp/Thùng |
| Điều khoản thanh toán: | T/T |

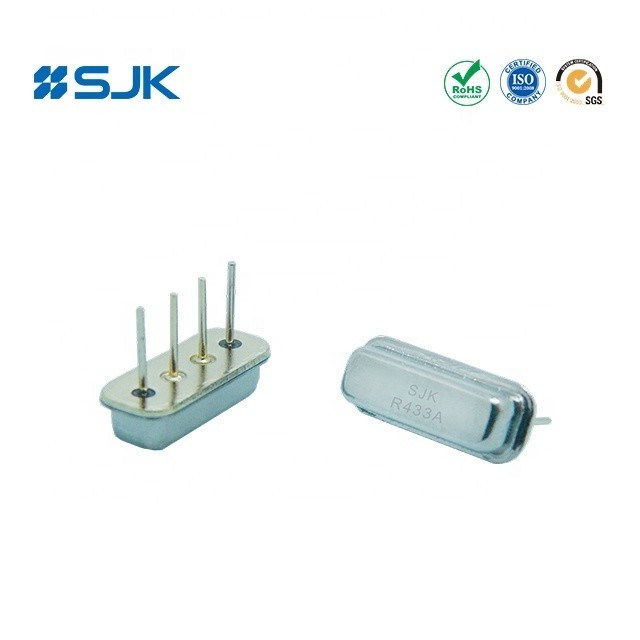

Dip Type SAW Resonator F-11 4 Pins With 433.92MHz ±75KHz
Features
1-Port SAW Resonator
Metal case for SC04-06 (F-11)
Electrostatic Sensitive Device (ESD)
Package size with 10.9*4.45*4.0mm
Application: Remote control, Security, Alarm etc
RoHS Compliant & Pb Free
Specifications
| P/N | Center Frequency (MHz) | Frequency Tolerance (kHz) | Insertion Loss (dB) | Package Code |
| R303.825 | 303.825 | ±30 /±75 | 1.5 | F-11 |
| R303.875 | 303.875 | ±30 /±75 | 1.5 | F-11 |
| R310 | 310.000 | ±30 /±75 | 1.5 | F-11 |
| R315 | 315.000 | ±30 /±75 | 1.3 | F-11 |
| R316.8 | 316.800 | ±30 /±75 | 1.2 | F-11 |
| R330 | 330.000 | ±30 /±75 | 1.6 | F-11 |
| R350 | 350.000 | ±30 /±75 | 1.5 | F-11 |
| R360 | 360.000 | ±30 /±75 | 1.3 | F-11 |
| R370 | 370.000 | ±30 /±75 | 1.7 | F-11 |
| R390 | 390.000 | ±30 /±75 | 1.5 | F-11 |
| R407.3 | 407.300 | ±30 /±75 | 1.5 | F-11 |
| R418 | 418.000 | ±30 /±75 | 1.5 | F-11 |
| R433 | 433.920 | ±30 /±75 | 1.7 | F-11 |
| R868.35 | 868.350 | ±75 /±150 | 2.2 | F-11 |
For other frequencies and specifications, please contact our sales department.
Dimensions [mm]
